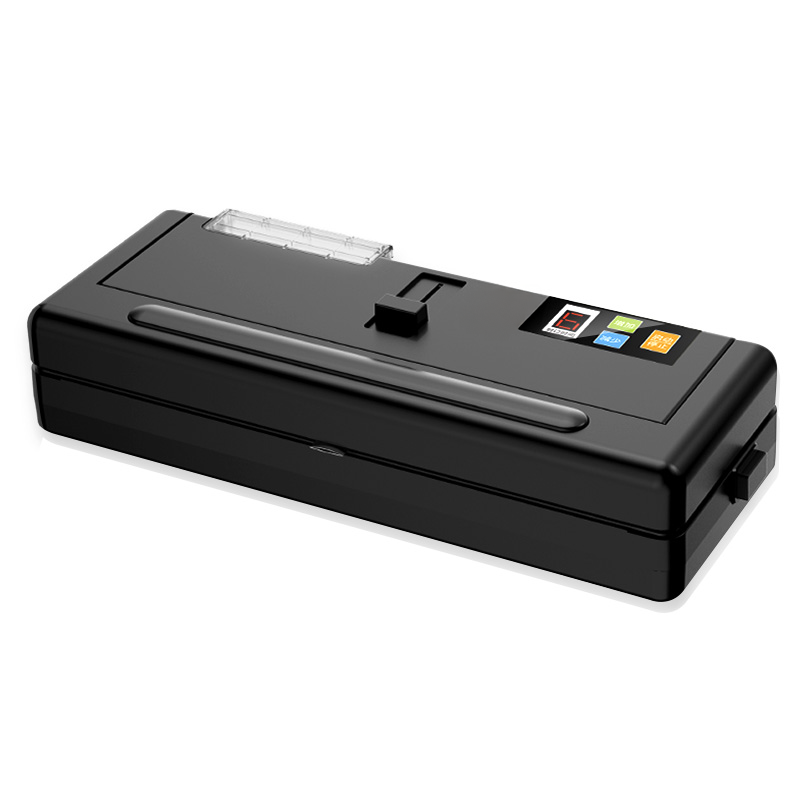

The UAHFW14: Why We Engineered a Household Sealer with Commercial Durability
The UAHFW14 (Series FW) is a heavy-duty household vacuum sealer built by Guilin Prime Household Products Co., LTD as a factory-direct OEM/private-label unit. It delivers 80 kPa of suction from a DC 15 V motor, runs on a 150 W system across a 28 cm sealing bar with a five-layered heating strip, and is rated for 24 hours of continuous use at up to 500 seals per day. For importers, wholesalers and brand owners, the short version is this: it is engineered to bridge the gap between casual household use and semi-commercial workload, so the machine keeps sealing well past the point where a budget unit overheats — the difference between a repeat order and a returns problem.
Key facts at a glance
- Manufacturer: Guilin Prime Household Products Co., LTD — factory-direct from our plant in Guilin, Guangxi, China.
- Model: UAHFW14 (Series FW), external household-to-semi-commercial vacuum sealer.
- Core specs: 80 kPa suction, 150 W rated power, DC 15 V motor, 28 cm seal width, 4 mm five-layered heating strip, 24 h continuous duty (up to 500 seals/day).
- In-house QC on every production run, backed by a 12-month warranty.
- OEM / ODM / private-label ready — custom ABS colour, panel, logo placement and localised packaging.
- MOQ from 100 units, 15–30 day lead time, FOB China.
Why we built a sealer for durability, not just price
When we look at the vacuum sealer market today, we see a lot of noise — thousands of low-cost units that photograph well but fail the moment a customer tries to seal twenty bags in a row. As a manufacturer, that frustrates us. For our B2B partners, a product return is not just a lost sale; it is a damaged reputation. So we designed the UAHFW14 to compete on consistency rather than on the lowest possible bill of materials.
The engineering brief Guilin Prime Household Products set for the Series FW was specific: build a compact unit that does not need a cool-down period after every few seals. Many “household” sealers force the user to stop and wait; we found that unacceptable for efficient kitchen work. The UAHFW14 is manufactured to handle 24 hours of continuous usage and up to 500 seals per day without performance degradation. We control the heating logic, the airflow and the chassis stability on our own production line — we are the factory making sure the specs are met, not a trader guessing at them.
Over-engineer the critical failure points
In the factory we talk a lot about thermal management. It is not a glamorous marketing term, but it is the reason your customers will trust your brand. Our philosophy for the FW Series is simple: over-engineer the parts that fail first. The heating element is usually the first thing to die in a vacuum sealer, so we moved away from a standard single-strip element and installed a five-layered heating strip instead. The extra layers distribute heat more evenly and prevent both the hot spots that melt bags and the cold spots that leave leaks. For a distributor, that means fewer warranty claims and a more stable product life cycle.
Breaking down the build
As the people who run the moulds and assemble the units, we can explain the rationale behind each key feature of the UAHFW14.
80 kPa suction from a calibrated DC motor
The UAHFW14 uses a DC 15 V motor tuned to deliver a consistent 80 kPa of suction at a 12 L/min ± 15% flow rate. We chose this calibration because it hits the sweet spot — strong enough to evacuate air from dense items like bulk meat, but controllable enough not to crush softer items when paired with the manual modes below.
Controllable vacuum degree and pulse mode
Rather than a simple stop button, we engineered a controllable vacuum degree mode. End-users get frustrated when bread is flattened or berries are crushed, so giving them manual control over the suction pressure turns a rigid machine into a versatile one. For your marketing team, that is a clear selling point: precision, not just power.
Filtered liquid extraction protects the motor
Moisture is the enemy of vacuum motors. To protect the internal components we integrated a filtered liquid extraction container and a detachable drip tray. Catching marinade or juice before it reaches the vacuum lines keeps the chamber clean and, more importantly, protects the pump — the difference between a machine that lasts six months and one that lasts years.
Built-in cutter and roll storage
The slider on top of the unit houses a cutting mechanism built directly into the chassis, because loose scissors are inefficient. It lets the user make custom-sized bags from a roll instantly. For an OEM buyer, that adds perceived value without meaningfully increasing the box size or shipping weight. An extended manual suction nozzle is included for canisters and smooth bags, and a double hand-press lock secures the seal.
Built for the global market
We have exported long enough to know that the global voltage landscape is a headache for inventory managers, which is why the UAHFW14 is engineered with a wide 100–220 V (50–60 Hz) range. Whether you distribute in Tokyo, New York or Berlin, the core technology stays compatible — you do not need to stock three internal variations of the same machine, because we handle the compatibility at the manufacturing level.
Commercial-grade food preservation is no longer just for restaurants. We see steady demand from “prosumer” buyers — families buying in bulk to save money, hunters preserving game, meal-preppers tired of disposable appliances. They want reliability, and that is exactly what the FW Series is specified to provide.
Full technical specifications (Model UAHFW14)
| Specification | Value |
|---|---|
| Model number | UAHFW14 (Series FW) |
| Product type | External household-to-semi-commercial vacuum sealer |
| Suction power | 80 kPa |
| Rated power | 150 W |
| Motor | DC 15 V rated |
| Voltage compatibility | 100–220 V (50–60 Hz), universal |
| Flow rate | 12 L/min ± 15% |
| Sealing width | 28 cm; heating strip 4 mm |
| Heating element | Five-layered heating strip |
| Duty cycle | 24 h continuous use; rated for 500 seals/day |
| Material | ABS high-impact plastic |
| Integrated features | Controllable vacuum degree (pulse/manual), built-in bag cutter & roll storage, detachable drip tray, filtered liquid extraction container, extended manual suction nozzle, double hand-press lock |
| Product dimensions | 36.5 × 14.8 × 7.2 cm |
| Product weight | Gross 1.9 kg |
| Export carton | 6 units/carton; 12 kg carton weight |
The compact 36.5 × 14.8 cm footprint stores easily where larger commercial units cannot, while the 24-hour duty cycle and 500-seals-per-day rating let the same unit absorb a heavy harvest-season or bulk-buying session without forced cool-downs. That combination is why we see this format positioned as a premium household tier rather than a disposable appliance.
Manufacturing, QC and warranty
Guilin Prime Household Products builds the UAHFW14 in-house at our plant in Guilin, Guangxi: our own moulds, assembly, quality control and testing. We work factory-direct — when you partner with us, you are dealing with the people who moulded the ABS shell, not a middleman who has never seen the production floor. Production runs are controlled so the unit you receive in January is identical to the one you receive in October.
We take quality control seriously. Every unit that comes off the line is tested for seal integrity and vacuum pressure — we process-check rather than spot-check, because we want your first container to be exactly as good as your tenth. Every run passes in-house QC, and the model carries a 12-month warranty.
Export logistics
Packaging is designed around export shipping: the master carton holds 6 units at a 12 kg carton weight, a density calculated to use container space efficiently while keeping handling weight manageable, which helps lower your landed cost per unit.
OEM, ODM and private-label
We support OEM and ODM cooperation deeply. Because we own the tooling and the technology, we can customise the control panel, the colourways and the branding to fit your private label. Whether you need a specific colour injection for the ABS shell, custom logo placement or localised retail packaging, our engineering team adapts the Series FW to your brand identity. We treat each project as a supply-chain relationship, not a one-off sale.
Order terms at a glance
- MOQ: from 100 units.
- Lead time: 15–30 days.
- Pricing basis: FOB China.
- Warranty: 12 months.
- Customisation: ABS colour, control panel, logo placement, localised packaging (OEM / ODM).
Certifications available
Compliance documentation can be provided on request for the UAHFW14 and our wider sealer range. Available certifications include:
CE, RoHS, UL, ETL, FCC, KC, EAC, UKCA, ISO 9001, FDA and BSCI.
Tell us your destination market and we will confirm which marks apply and provide the corresponding paperwork.
Frequently asked questions
How much suction does the UAHFW14 produce?
It delivers 80 kPa of suction from a DC 15 V motor at a 12 L/min ± 15% flow rate — specified to evacuate air from dense items like bulk meat, with a controllable mode for softer foods.
Can it handle continuous, semi-commercial use?
Yes. The UAHFW14 is rated for 24 hours of continuous usage and up to 500 seals per day, with a five-layered heating strip engineered to avoid the overheating and burn-out common to single-strip budget units.
What is the minimum order, and can we brand it?
MOQ starts at 100 units with a 15–30 day lead time, FOB China. The unit is OEM/ODM-ready: custom ABS colour, control panel, logo placement and localised packaging are all supported.
Is there a warranty?
Yes — a 12-month warranty, with in-house QC on every production run.
Discuss your production run
We are ready to schedule production of the Series FW UAHFW14 to your specification. We prefer to start with a frank discussion of your volume, your customisation needs and your timeline, then put a sample in your hands so you can check the build quality yourself. We are not looking for a single transaction — we are looking for partners who value engineering consistency.
