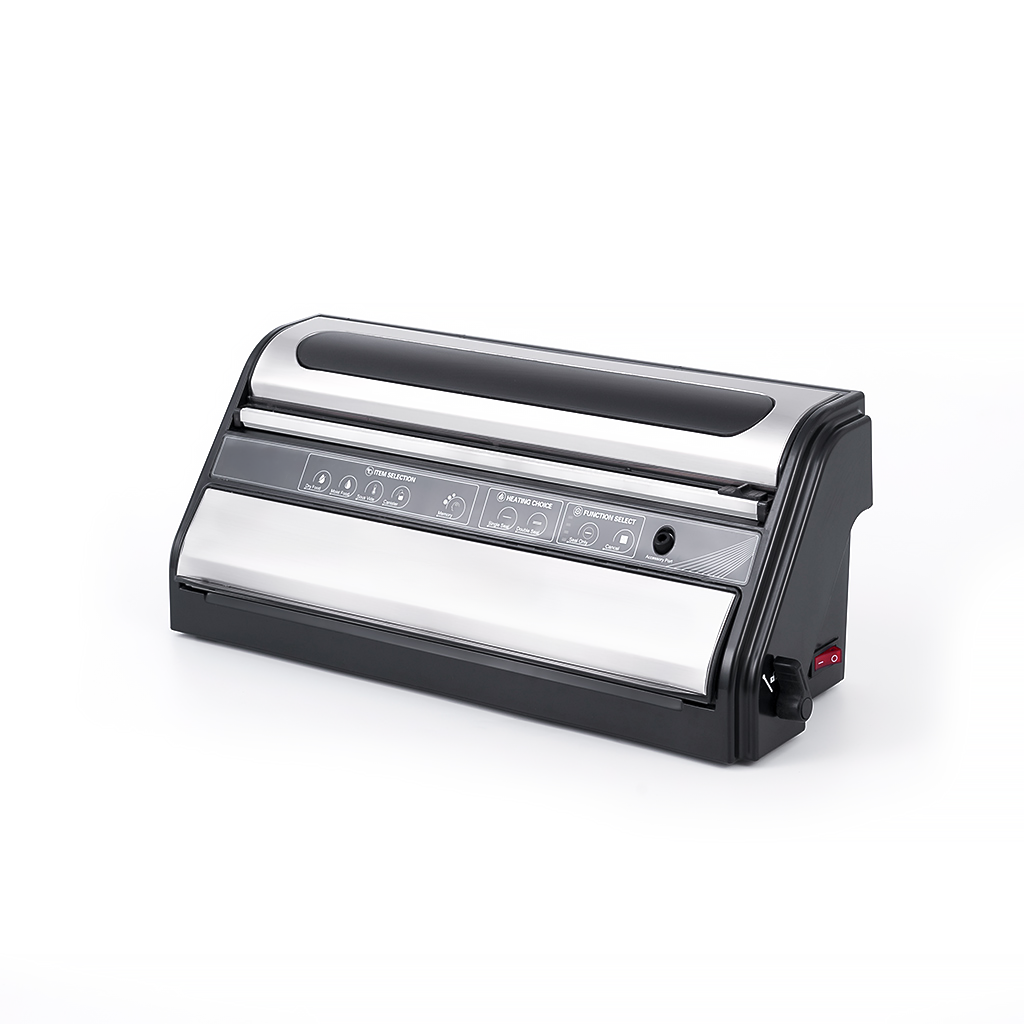

Commercial Vacuum Sealer UAH06B: Engineered with Double-Pump Systems for High-Volume Distribution
The UAH06B is a commercial-grade double-pump food vacuum sealer built by Guilin Prime Household Products Co., LTD as a factory-direct OEM/private-label unit. It runs a 130 W system on a dual-pump configuration that pulls 80 kPa of suction, seals across a 33 cm bar with a 6 mm double seal, and runs at a 40 dB noise level with air-cooled heat dissipation for continuous use. For distributors and brand owners, the short version is this: it is engineered to bridge the gap between a household sealer and an industrial unit, so it keeps holding seals through a full commercial day — the difference between a repeat order and a returns problem.
Key facts at a glance
- Manufacturer: Guilin Prime Household Products Co., LTD — factory-direct from our plant in Guilin, Guangxi, China.
- Model: UAH06B (Series B), commercial double-pump vacuum sealer.
- Core specs: 80 kPa suction, double-pump system, 130 W rated power, 33 cm seal width, 6 mm double seal, 40 dB air-cooled operation.
- In-house QC on every production run, backed by a 12-month warranty.
- OEM / ODM / private-label ready — custom logo on the stainless faceplate and localised packaging.
- MOQ from 100 units, 15–30 day lead time, FOB China.
Why a double-pump sealer, and who it is for
The UAH06B is built for the “prosumer” and commercial space — the place where a sealer stops being a kitchen gadget and becomes a tool for operational efficiency. The engineering question Guilin Prime Household Products set out to answer was specific: how do you build a unit that delivers commercial-grade speed and stays airtight on the hundredth sealing cycle of the day, rather than a basic household machine pushed past its limits?
The answer starts with the pump and the thermal system, not the housing. A sealer is a mechanical system of heat and pressure; if either fluctuates, the seal fails and the product comes back. We specify the UAH06B around stability so the hundredth cycle is as airtight as the first, which is what keeps a unit in the customer’s kitchen and out of your returns department.
Suction first, with a double-pump configuration
Most standard sealers struggle with speed. The UAH06B integrates a double-pump configuration to deliver 80 kPa of suction, so the air leaves the bag quickly instead of crawling out. For a distributor, that lets you position the unit to small restaurants, butchers and sous-vide users who need commercial-grade pull rather than a light-duty home format. The pump can also be customised to specific torque requirements on an OEM run.
Breaking down the build
As the people who run the assembly line, we can explain the rationale behind each key feature of the UAH06B.
The 33 cm sealing bar
The 33 cm sealing width is wide enough to accommodate several smaller bags at once. For a small-scale food producer that becomes an instant productivity point: more bags sealed per pass, less time per batch. It also handles wide bags that narrower home units cannot.
The 6 mm double seal
The UAH06B offers both a 3 mm single seal and a 6 mm double seal. In vacuum sealing, that wider double weld is the difference between a bag that slowly leaks air over a week and one that stays tight for months — which for a distributor translates directly into fewer warranty claims from food businesses that need a dependable airtight seal.
Air-cooled thermal management
A common failure point in vacuum sealers is overheating during continuous use. The UAH06B is equipped with an air-cooled heat-dissipation system and runs at a 40 dB low-noise profile, so it can handle back-to-back sealing without the mandatory cool-down periods that interrupt cheaper models. Sustained operation is a reliability feature, not just a convenience one.
Moisture, inflation and easy-clean modes
Food is not always dry. The control set includes Dry and Moist modes, a Sous Vide setting, Canister mode, Manual Seal, Double Seal and a bag-inflation mode for delicate items such as berries or chips. A moisture-extraction system with a built-in easy-clean sink keeps liquid out of the chamber — excess moisture is a leading cause of motor failure in this category, so this is a durability feature as much as a versatility one.
Full technical specifications (Model UAH06B)
| Specification | Value |
|---|---|
| Model number | UAH06B (Series B) |
| Product type | Commercial double-pump vacuum sealer |
| Vacuum pump | Double-pump system (customisation available) |
| Suction power | 80 kPa |
| Flow rate | 15 L/min ± 15% |
| Rated power | 130 W |
| Operating voltage | 100–220 V (50–60 Hz) |
| Motor rated voltage | DC 15 V |
| Sealing width | Max 33 cm |
| Sealing strip width | 3 mm single seal / 6 mm double seal |
| Noise level | 40 dB with integrated air-cooled dissipation |
| Operational modes | Dry, Moist, Sous Vide, Canister, Manual Seal, Double Seal, Bag Inflation |
| Material | ABS housing with 304-grade stainless steel accents |
| Integrated tools | Sliding bag cutter, roll-bag storage compartment, easy-clean sink |
| Accessories | Vacuum bag roll, flat vacuum bags, external suction tube, power cord, moisture-extraction cans |
| Product dimensions | 43.5 × 17 × 16 cm |
| Gross weight | 3.05 kg |
| Export carton | 2 units/carton; 7.5 kg total carton weight |
The 43.5 × 17 cm footprint and 304-stainless accents are specified for the high-moisture, high-traffic environments these machines live in. International markets are demanding, and a distributor in Europe or Australia cannot afford a factory that cuts corners on the thickness of a heating strip or the quality of a motor winding — so we hold those to a fixed specification across every run.
Manufacturing, QC and warranty
Guilin Prime Household Products builds the UAH06B in-house at our plant in Guilin, Guangxi: our own assembly, quality control and testing. We control the entire assembly process, which is what lets us include details such as the built-in easy-clean sink that factories assembling generic parts often miss. Every unit undergoes suction testing and thermal-consistency checks before it is packed, and the model carries a 12-month warranty. We ship verified quality, not average batches.
Export logistics
Packaging is designed around export shipping. Units are packed two per export carton at a 7.5 kg total carton weight — a density calculated to protect the unit in transit while keeping carton handling manageable, which helps control your landed cost per unit.
OEM, ODM and private-label
Your brand is your equity, so the UAH06B is built to carry it. We offer flexible branding options, from custom logo placement on the stainless steel faceplate to tailored packaging dimensions that optimise your shipping costs. Pump torque and voltage configuration can be adapted on an OEM run for your region. We treat each project as a long-term supply relationship, not a one-off sale.
Order terms at a glance
- MOQ: from 100 units.
- Lead time: 15–30 days.
- Pricing basis: FOB China.
- Warranty: 12 months.
- Customisation: logo on the stainless faceplate, packaging, pump torque and voltage (OEM / ODM).
Certifications available
Compliance documentation can be provided on request for the UAH06B and our wider sealer range. Available certifications include:
CE, RoHS, UL, ETL, FCC, KC, EAC, UKCA, ISO 9001, FDA and BSCI.
Tell us your destination market and we will confirm which marks apply and provide the corresponding paperwork.
Frequently asked questions
How strong is the suction on the UAH06B?
The UAH06B pulls 80 kPa from a double-pump configuration on a 130 W system. That is specified for commercial-grade speed on moist and bulky foods, not just dry goods, and the pump torque can be customised on an OEM run.
How wide can it seal, and how strong is the seal?
The sealing bar is 33 cm, wide enough to seal several smaller bags at once, and it offers a 3 mm single seal or a 6 mm double seal for an airtight weld that holds for months.
Can it run continuously?
Yes — an air-cooled heat-dissipation system and a 40 dB noise profile let it handle back-to-back sealing without the cool-down periods that interrupt cheaper models.
What is the minimum order, and can we brand it?
MOQ starts at 100 units with a 15–30 day lead time, FOB China. The unit is OEM/ODM-ready: custom logo placement on the stainless faceplate and localised packaging are supported.
Is there a warranty?
Yes — a 12-month warranty, with in-house QC and per-unit suction and thermal testing on every production run.
Discuss your next shipment
We are ready to schedule production of the Series B UAH06B to your specification. Whether you need a specific voltage configuration for your region or custom accessories such as moisture-extraction cans, we prefer to start with a frank discussion of your volume and timeline, then put a sample in your hands so you can check the build quality yourself.
