The Shift to Cordless: Engineering the UAH78C Rechargeable Vacuum Sealer for Private-Label Stability

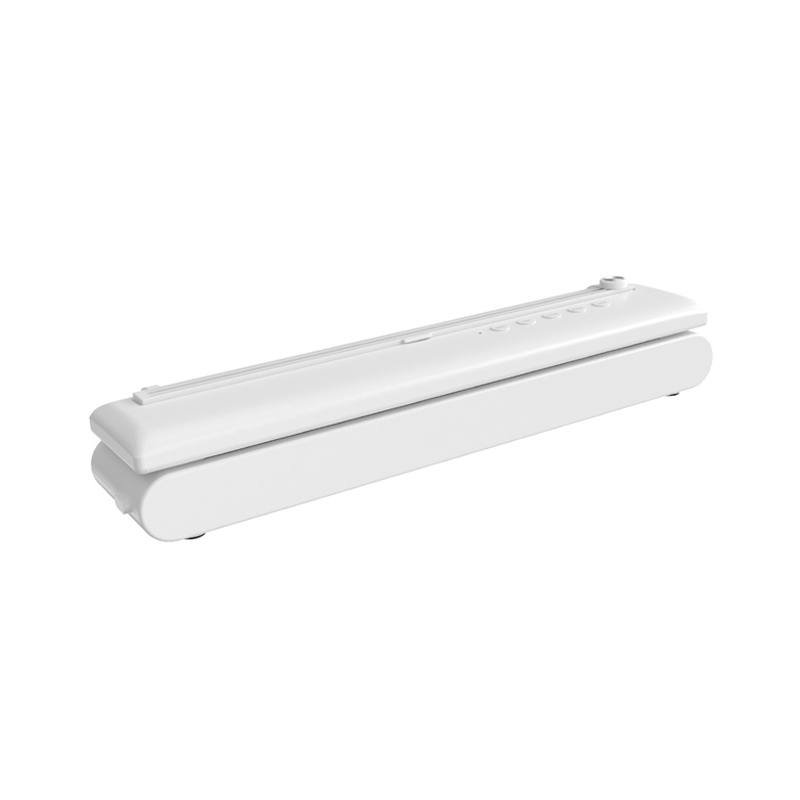

The UAH78C is a cordless, rechargeable food vacuum sealer built by Guilin Prime Household Products Co., LTD as a factory-direct OEM/private-label unit. It runs a 110 W sealing system on a built-in 2000 mAh lithium battery, pulls 60 kPa of suction, seals across a 30 cm bar with a 3 mm heating strip, and completes roughly 50 vacuum cycles per charge. For importers and brand owners, the short version is this: it is engineered so a battery-powered sealer holds a seal as reliably as a corded one, which is the difference between a repeat order and a returns problem.
Key facts at a glance
- Manufacturer: Guilin Prime Household Products Co., LTD — factory-direct from our plant in Guilin, Guangxi, China.
- Model: UAH78C (Series C), rechargeable / cordless vacuum sealer.
- Core specs: 60 kPa suction, 110 W rated power, 2000 mAh lithium battery, ~50 cycles per charge, 30 cm seal width, 3 mm heating strip.
- In-house QC on every production run, backed by a 12-month warranty.
- OEM / ODM / private-label ready — custom ABS colour, logo placement and localised packaging.
- MOQ from 100 units, 15–30 day lead time, FOB China.
Why cordless, and why now
Across the small-appliance category, the kitchen is going wireless. End-users no longer want to fight for an outlet by the counter, and the demand we see on the production line for portable formats reflects that. The engineering question Guilin Prime Household Products set out to answer with the UAH78C was specific: how do you build a portable, battery-operated vacuum sealer that matches the suction performance of a wired unit, rather than a light-duty version of one?
The answer is to start with the motor and the power delivery system instead of the housing. A weak rechargeable unit produces inconsistent seals and drives product returns; a properly specified one builds brand loyalty. We refused to under-spec the UAH78C to hit a lower battery cost.
Power first, portability second
The UAH78C uses a 110 W sealing system driven by a built-in 2000 mAh lithium battery. In our testing, dropping below this wattage on a rechargeable unit produces inconsistent seals, particularly on moist foods or thicker mylar bags. The 60 kPa suction engages immediately on the vacuum cycle, and the unit is tuned so the fiftieth seal matches the quality of the first. The ABS housing is robust, but consistency across a charge cycle is what protects your warranty rate.
Breaking down the build
As the people who run the moulds and assemble the units, we can explain the rationale behind each key feature of the UAH78C.
The 3 mm heating strip
Entry-level sealers often use a 2 mm heating wire to save cost. The UAH78C standardises on a 3 mm heating strip. In vacuum sealing, that extra millimetre is the difference between a bag that slowly leaks air over a week and one that stays tight for months — which for a distributor translates directly into fewer warranty claims.
The 2000 mAh power architecture
The 2000 mAh lithium configuration is sized to complete approximately 50 vacuum cycles per charge, which covers the typical household’s bulk-buying needs for two to three weeks. We balanced battery weight against runtime so the finished unit weighs a gross 0.86 kg — genuinely portable without feeling cheap.
Integrated sliding cutter
The bag cutter is built into the chassis rather than supplied as a separate handheld tool. That is harder to tool, but it lets the user cut a custom bag length from a roll in one pass — a feature usually reserved for larger countertop machines — and it raises the perceived value of the product.
Dry and wet sealing modes
The control board supports both dry and wet items, and the pump logic limits how much moisture is drawn into the vacuum chamber. Excess moisture in the chamber is the leading cause of motor failure in this category, so this is a reliability feature as much as a convenience one. An external vacuum hose port lets the same compact unit seal canisters, extending its use beyond bags.
Full technical specifications (Model UAH78C)
| Specification | Value |
|---|---|
| Model number | UAH78C (Series C) |
| Product type | Rechargeable / cordless vacuum sealer |
| Battery | Built-in 2000 mAh lithium battery |
| Performance per charge | Approx. 50 vacuum cycles |
| Suction power | 60 kPa |
| Rated power | 110 W |
| Voltage compatibility | 100–240 V (global) |
| Flow rate | 3.3 L/min ± 15% |
| Sealing width | Max 30 cm; heating strip 3 mm |
| Material | ABS housing |
| Integrated features | Sliding bag cutter, dry/wet mode |
| Accessories | Food sealing vacuum bags, external vacuum hose |
| Product dimensions | 38.8 × 8.68 × 7.3 cm |
| Product weight | Gross 0.86 kg |
| Export carton | 15 units/carton; 45.5 × 41.5 × 38 cm; 17.5 kg |
The drawer-friendly 38.8 × 8.68 cm footprint stores easily where commercial units cannot, which is why we see strong demand for this format in European and North American kitchens where counter space is at a premium. The 110 W rating also lets the unit handle a single large bulk-buying session — a warehouse-club or wholesale run in one sitting — without overheating.
Manufacturing, QC and warranty
Guilin Prime Household Products builds the UAH78C in-house at our plant in Guilin, Guangxi: our own moulds, assembly, quality control and testing. Production runs are controlled so the unit you receive in January is identical to the one you receive in October — the ABS material, the battery sourcing and the pump pressure are all held to a fixed specification. Every run passes in-house QC, and the model carries a 12-month warranty.
Export logistics
Packaging is designed around export shipping. The master carton holds 15 units at 45.5 × 41.5 × 38 cm and 17.5 kg, a density calculated to use container space efficiently while keeping carton weight manageable — which lowers your landed cost per unit.
OEM, ODM and private-label
The wide, clean top surface of the UAH78C was designed to carry your branding. Whether you need a specific colour injection for the ABS shell, custom logo placement or localised retail packaging, our engineering team adapts the Series C to your brand identity. We treat each project as a supply-chain relationship, not a one-off sale.
Order terms at a glance
- MOQ: from 100 units.
- Lead time: 15–30 days.
- Pricing basis: FOB China.
- Warranty: 12 months.
- Customisation: ABS colour, logo placement, localised packaging (OEM / ODM).
Certifications available
Compliance documentation can be provided on request for the UAH78C and our wider sealer range. Available certifications include:
CE, RoHS, UL, ETL, FCC, KC, EAC, UKCA, ISO 9001, FDA and BSCI.
Tell us your destination market and we will confirm which marks apply and provide the corresponding paperwork.
Frequently asked questions
How strong is the suction on a cordless sealer?
The UAH78C pulls 60 kPa on a 110 W system. That is specified so a battery-powered unit seals moist and bulky foods reliably, not just dry goods.
How many seals per charge?
Approximately 50 vacuum cycles on a single charge of the 2000 mAh battery — roughly two to three weeks of typical household bulk-buying.
What is the minimum order, and can we brand it?
MOQ starts at 100 units with a 15–30 day lead time, FOB China. The unit is OEM/ODM-ready: custom ABS colour, logo placement and localised packaging are all supported.
Is there a warranty?
Yes — a 12-month warranty, with in-house QC on every production run.
Discuss your production requirements
We are ready to schedule production of the Series C UAH78C to your specification. We prefer to start with a frank discussion of your volume, your customisation needs and your timeline, then put a sample in your hands so you can check the build quality yourself.
