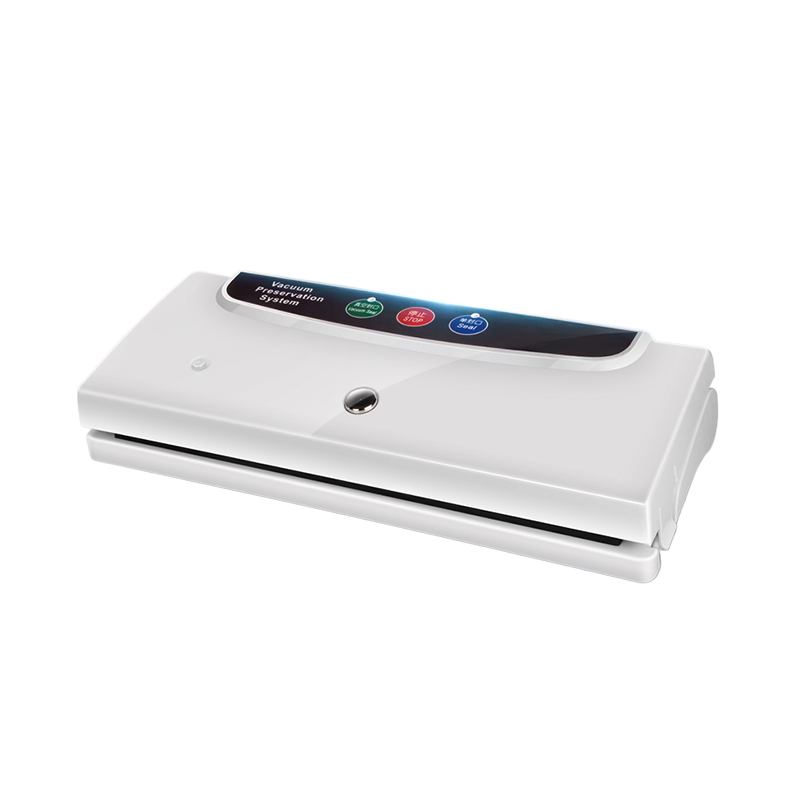

The UAHFW17 (Series FW) is a household food vacuum sealer built by Guilin Prime Household Products Co., LTD for distributors who need a machine that handles smooth bags and moist foods without driving up returns. It delivers 80 kPa of suction from a 150W system, seals across a 32 cm bar with a 3 mm, five-layered heating strip, runs on a wide 100–220V range (50–60Hz), and reaches a 12 L/min ± 15% flow rate. We supply it factory-direct on OEM/ODM and private-label terms, with an MOQ from 100 units, a 15–30 day lead time, and FOB China pricing.
We have manufactured kitchen appliances in Guilin for many years, and that experience shaped how we built the UAHFW17. We did not set out to make the flashiest gadget on a shelf; we set out to solve the two complaints that send sealers back to the distributor — the inability to seal cost-effective smooth bags, and pumps that fail the moment liquid enters the chamber. By engineering a single unit that handles both, we give our B2B partners a product that builds brand loyalty instead of support tickets.
In our factory we treat a sealer’s exterior as the customer’s concern and its interior as the distributor’s. If the pump, the heating strip, and the gaskets are not built to last, it is the distributor who absorbs the reputation damage. So we prioritize cycle stability: the UAHFW17 is designed to perform its hundredth seal as cleanly as its first. We chose a DC 15V motor system for consistent torque without overheating during repetitive batch sealing, and an ABS housing for impact resistance and thermal stability.
Key Specifications at a Glance
| Model | UAHFW17 (Series FW) |
|---|---|
| Housing Material | ABS |
| Rated Power | 150W |
| Suction Power | 80 kPa |
| Flow Rate | 12 L/min ± 15% |
| Voltage Compatibility | 100–220V (50–60Hz) |
| Internal Motor | DC 15V |
| Maximum Sealing Width | 32 cm |
| Heating Strip | 3 mm width, five-layered construction |
| Vacuum Chamber | Sixth-generation upgraded design |
| Compatible Bags | Smooth bags and universal vacuum bags |
| Product Dimensions | 38.5 × 15.5 × 8 cm |
| Product Weight | 1.8 kg (gross) |
| Export Packing | 5 units per carton (44.5 × 33.5 × 41 cm; 11 kg) |
| OEM / ODM | Custom branding, packaging, voltage/plug configurations |
Our Manufacturing Philosophy: Durability Over Hype
In manufacturing, the first sale is easy; it is the repeat container orders that matter, and you only earn those by protecting the distributor’s reputation. A vacuum sealer needs to perform the hundredth seal as well as the first, so we engineer for cycle stability rather than shelf appeal. We use ABS for the housing not only for cost but for impact resistance and thermal stability under back-to-back sealing, and we rate the motor system at DC 15V so it holds consistent torque without overheating during repetitive batch work.
For us a successful export is not the moment the container leaves our dock; it is when the end user runs the machine for years without an issue. That standard is why every production run passes in-house QC on our factory floor — we check vacuum-pressure consistency and sealing-strip temperature uniformity before a single pallet is loaded. We do not ship hope; we ship tested units.
Why We Engineered These Specific Features
When you look at the UAHFW17 you see a clean white chassis. When we look at it, we see specific engineering decisions made to solve real-world problems — each of which makes a more sellable product for our B2B partners.
Extended Automatic Suction Nozzle (Smooth-Bag Compatibility)
Most household sealers force the buyer onto expensive textured channel bags. We engineered the UAHFW17 with an extended automatic suction nozzle so it vacuums and seals standard smooth bags as well as universal vacuum bags. For the end user that means significantly lower recurring consumable cost; for the distributor it is a clear marketing angle — the sealer that saves money on bags.
Filtered Liquid Extraction Container
Moisture is the enemy of vacuum pumps, and standard units often fail when liquid is drawn into the chamber. We integrated a filtered liquid extraction container that captures excess moisture and marinades before they reach the motor, protecting the internal components. In practice this lowers the return rate compared with standard dry-only units.
5-Layer Heating Strip
A weak seal leads to freezer burn. We use a 3 mm wide, five-layered heating strip because a 32 cm seal is long, and any cool spot in that line becomes a leak. The five-layer construction is insurance: it forms a hermetic seal even with minor wrinkles in the bag or slight moisture at the sealing line.
Controllable Vacuum Degree
We moved past simple on/off logic. A controllable vacuum degree mode lets the operator stop suction before crushing delicate items such as bread or berries, which puts control in the user’s hands and makes the unit versatile across a wider range of foods — widening its appeal for our wholesalers.
The Reality of the Global Vacuum Sealing Market
Demand for food preservation hardware is no longer just about keeping leftovers. It is about bulk buying, sous-vide cooking, and reducing food waste in response to rising prices. Importers need equipment that adapts to those habits, and the UAHFW17 is built with a wide 100–220V (50–60Hz) range so a single platform serves North America, Europe, and beyond without drastic retooling.
That wide voltage compatibility also means the unit tolerates the voltage fluctuations common in some developing markets, so it keeps working where a narrowly rated machine would not. For our wholesalers, one SKU that ships into many regions simplifies inventory and widens the addressable market.
Factory, In-House QC & 12-Month Warranty
Because we operate our own production lines, we do not have to guess about lead times or material quality. We control the process from the molding of the ABS body to the final check of the sixth-generation vacuum chamber. Quality control is not a bolt-on department here; it is integrated into every stage of assembly, from incoming component inspection to the final function test before packing.
Each UAHFW17 is backed by a 12-month warranty against manufacturing defects. By keeping the seal mechanism robust and the liquid-handling path protected, we keep your downstream support and after-sales costs low.
OEM, ODM & Private-Label Programs
The UAHFW17 is a proven platform, and for our OEM and private-label partners that means flexibility with consistency. A brand owner needs to know the unit produced in June is identical to the unit produced in December, so we hold strict component-sourcing standards across every run rather than shopping for cheaper internal parts once a program is set.
Customization we routinely support includes custom logo placement and housing color, retail and gift-box packaging, and region-specific plug and voltage configurations within the 100–220V range. Our export cartons are sized and reinforced for the journey (5 units at 11 kg per carton) because we manufacture not just the product but the security that it arrives functional.
Ordering: MOQ, Lead Time & Terms
| Minimum Order Quantity | From 100 units |
|---|---|
| Production Lead Time | 15–30 days (volume dependent) |
| Trade Terms | FOB China |
| Warranty | 12 months against manufacturing defects |
| Export Packing | 5 units per carton, 44.5 × 33.5 × 41 cm, 11 kg |
| Customization | OEM / ODM / private-label |
We are happy to discuss your market’s specific voltage requirements, regional plug types, and how to integrate your branding into the Series FW line. Our focus is long-term supply and helping you build a stable category in your local market.
Certifications Available
Compliance documentation can be provided on request to support your market-entry and customs requirements. Available certifications include:
- CE
- RoHS
- UL
- ETL
- FCC
- KC
- EAC
- UKCA
- ISO 9001
- FDA
- BSCI
A Typical Partner Story
One distributor came to us struggling with high return rates on a competitor’s compact sealer. Their customers were trying to seal soups and marinated meats, and the competitor’s pumps were failing on liquid intake. They switched their production to the UAHFW17 platform, and because of the filtered liquid extraction container and the robust 80 kPa suction, their returns dropped to near zero. They also began marketing smooth-bag compatibility to restaurants and delis, opening a B2B channel they had not reached before — stability in the product turned into stability in their business.
Full Technical Specifications
- Model: UAHFW17 (Series FW)
- Product Series: FW Household Vacuum Sealers
- Housing Material: ABS
- Rated Power: 150W
- Suction Power: 80 kPa
- Flow Rate: 12 L/min ± 15%
- Voltage Compatibility: 100–220V (50–60Hz)
- Internal Motor: DC 15V
- Maximum Sealing Width: 32 cm
- Heating Strip: 3 mm width, five-layered construction
- Operation Modes: Intelligent Vacuum Mode, Start/Pause, Manual Sealing, Controllable Vacuum Degree
- Vacuum Chamber: Sixth-generation upgraded design
- Features: Extended automatic suction nozzle (smooth-bag compatible), filtered liquid extraction container, double hand-press lock, detachable drip tray
- Compatible Bags: Smooth bags and universal vacuum bags
- Product Dimensions: 38.5 × 15.5 × 8 cm
- Product Weight: 1.8 kg (gross)
- Packaging: 5 units per export carton (44.5 × 33.5 × 41 cm; 11 kg)
- Manufacturing Support: OEM/ODM services, private-label packaging, custom voltage/plug configurations
Frequently Asked Questions
What is the minimum order quantity for the UAHFW17?
Our MOQ starts at 100 units. We are happy to discuss a trial shipment for partners testing a new market.
How strong is the suction?
The UAHFW17 delivers 80 kPa of suction from its 150W system, with a flow rate of 12 L/min ± 15%. A controllable vacuum degree mode is included for delicate items such as bread and berries.
Can it seal smooth bags, or only textured ones?
It seals both. The extended automatic suction nozzle supports standard smooth bags alongside universal vacuum bags, so your customers are not locked into more expensive embossed consumables.
What happens if liquid is drawn in during sealing?
The filtered liquid extraction container captures excess moisture and marinades before they reach the motor, which protects the internal components and reduces returns on wet-food sealing.
What voltage and power does it use?
It runs across a wide 100–220V range (50–60Hz) at a rated 150W, with an internal DC 15V motor. We can configure plug types for your region.
Can you produce it under our own brand?
Yes. We offer OEM, ODM, and private-label programs, including custom logo placement and housing color, packaging, and plug/voltage configuration.
What are the lead time and trade terms?
Standard production lead time is 15–30 days depending on volume, quoted FOB China. Units ship five per export carton (44.5 × 33.5 × 41 cm; 11 kg).
Which certifications are available?
On request we can provide CE, RoHS, UL, ETL, FCC, KC, EAC, UKCA, ISO 9001, FDA, and BSCI documentation to support your market entry.
Discuss Your Production Run
We are ready to schedule production for the upcoming season. If you are looking for a factory partner that prioritizes internal build quality and versatile features such as smooth-bag compatibility and protected liquid handling, Guilin Prime Household Products Co., LTD is ready to discuss specifications, MOQ, your regional voltage and plug requirements, and how to adapt the UAHFW17 to your market within the Series FW line.
