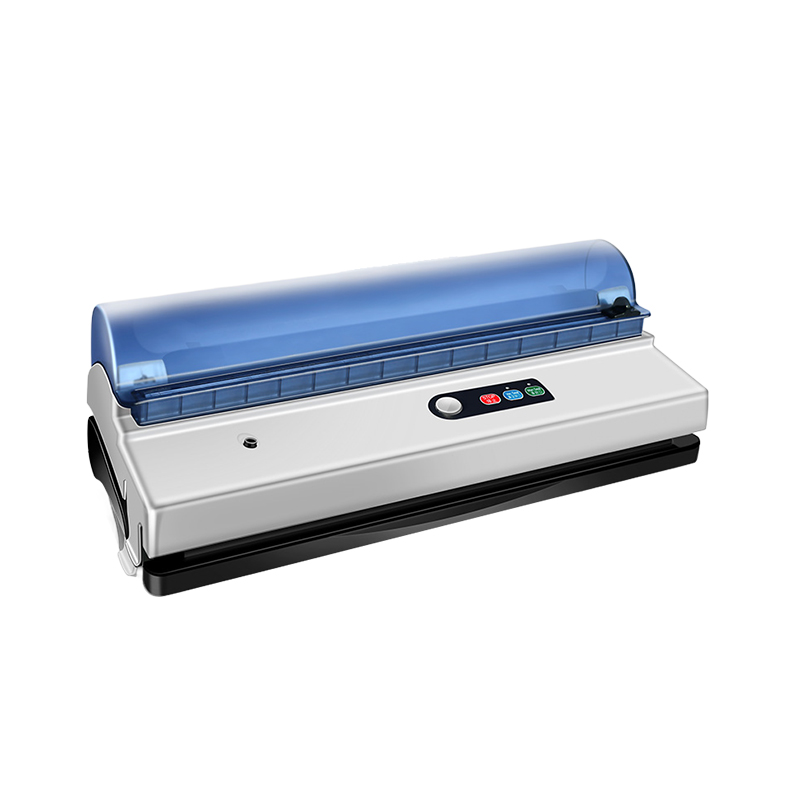

The UAHFW19 is a household-grade external vacuum sealer built by Guilin Prime Household Products Co., LTD for distributors who need a wide-bag, high-suction machine that holds up to repeat use. It pairs a 32 cm sealing bar with a steady 80 kPa of suction, a five-layered 3 mm heating strip, and a DC 15V motor drawing 150W, and runs across a 100–220V (50–60Hz) range. We supply it factory-direct on OEM/ODM and private-label terms, with an MOQ from 100 units, a 15–30 day lead time, and FOB China pricing.
When we first sat down to design the Series FW, specifically the UAHFW19 model, we were not just looking to add another SKU to the assembly line. In the vacuum sealer category it is easy to make a machine that looks good on a shelf but fails after three months of consistent use, and for a manufacturer that is the worst-case scenario. When a distributor’s customer returns a unit it does not just hurt their margin — it hurts our reputation as a factory. We built this machine to address the weak-seal and slow-cycle complaints that follow many household-grade units exported from China.
The two specifications that define this model are the 32 cm sealing width and the steady 80 kPa suction. Together they let your customers run a wider variety of bags and pull a deeper, more consistent vacuum than the 28–30 cm machines that crowd the entry-level market. The sections below explain why we made each of those engineering choices, and the commercial terms we offer partners who want to carry the UAHFW19 under their own brand.
Key Specifications at a Glance
| Model | UAHFW19 (Series FW) |
|---|---|
| Material | High-grade ABS housing |
| Vacuum Suction | 80 kPa |
| Flow Rate | 12 L/min ± 15% |
| Maximum Sealing Width | 32 cm |
| Heating Strip | Five-layered construction, 3 mm width |
| Motor | DC 15V rated |
| Power Consumption | 150W |
| Voltage Range | 100–220V (50–60Hz) |
| Product Dimensions | 38.5 × 15.5 × 12.5 cm |
| Product Gross Weight | 1.85 kg |
| Export Carton | 4 units per carton (44.7 × 41 × 40.2 cm, 9 kg) |
| OEM / ODM | Available for custom branding and configuration |
Our Manufacturing Philosophy: Stability Over Novelty
In our workshop we have a saying: a repeat order is the only real compliment. To earn that repeat order we focus on the internals the end-user never sees but definitely feels. We do not chase every passing design trend; instead we concentrate on the durability of the heating element and the consistency of the motor.
When we talk about durability we are really talking about after-sales stability. For a wholesaler a 2% defect rate is a headache and a 5% rate is a disaster, so we run production with a mindset of pushing that figure to the absolute minimum — using a DC 15V rated motor and the five-layered 3 mm heating strip. These are not just parts; they are the insurance policy for our partners’ businesses. We back that approach with in-house QC on the factory floor, where every unit is function-tested before a pallet is loaded.
Why We Engineered These Specific Features
Every specification on the UAHFW19 was a conscious choice made during the prototyping phase, and each one was made with the end-user’s experience — and therefore your sell-through — in mind.
32 cm Sealing Width
Many standard machines stop at 28 cm or 30 cm, which limits the user to specific bag sizes. By pushing to 32 cm we let your customers use a wider variety of bags, making the machine more versatile in a heavy-use household or light commercial setting.
80 kPa Suction
Lower suction often leaves micro-pockets of oxygen that lead to freezer burn. A steady 80 kPa draws a deeper vacuum, so the machine performs as a genuine food-preservation tool rather than a kitchen novelty — a real selling point for a distributor.
Five-Layered Heating Strip
The 3 mm five-layered strip dissipates heat more efficiently, so the unit resists the melt-through and overheating issues that show up after ten consecutive seals on thinner single-layer strips.
Integrated Roll Storage & Cutter
A built-in roll compartment with a blade cutter keeps the workspace tidy and produces a straight cut every time, which prevents the sealing failures that jagged, hand-cut bag edges cause.
We also kept the controls deliberately simple. A button-type operation with intelligent vacuum mode selection, a soft-vacuum mode for delicate foods, manual sealing, and a controllable vacuum degree means the machine works the first time, every time, without the end-user needing to read a fifty-page manual. The double hand-press lock, detachable drip tray, and detachable upper part round out a unit that is easy to operate and easy to clean.
Factory, In-House QC & 12-Month Warranty
When you work with Guilin Prime Household Products Co., LTD you are dealing directly with the people who control the bill of materials and the QC stations. We do not source components from unknown vendors; we run a vetted supply chain that has grown with us over the years. Quality control is not a bolt-on department for us — it is built into every stage, from incoming component inspection to the final function test before packing.
Each UAHFW19 is backed by a 12-month warranty against manufacturing defects. Our QC philosophy is centered on the “Golden Sample” approach: every unit that leaves our export carton must match the performance of the approved prototype. We are built for long-term supply, not one-off shipments.
OEM, ODM & Private-Label Programs
For our OEM and private-label partners, your brand is your most valuable asset, and we treat your logo as if it were our own. Consistency is the priority: you need to know the unit produced in June is identical to the one produced in December. We hold strict component-sourcing standards so the DC 15V motor and the five-layered heating strip stay uniform across every production run. Once a contract is signed we do not shop around for cheaper internal parts; we value the stability of the finished product over marginal cost-cutting.
Customization we routinely support includes custom branding and logo placement, retail and gift-box packaging, region-specific plug and voltage configuration within the 100–220V range, and manual and color-box localization for your market.
Ordering: MOQ, Lead Time & Terms
| Minimum Order Quantity | From 100 units |
|---|---|
| Production Lead Time | 15–30 days (volume dependent) |
| Trade Terms | FOB China |
| Warranty | 12 months against manufacturing defects |
| Export Packing | 4 units per carton, 44.7 × 41 × 40.2 cm, 9 kg |
| Customization | OEM / ODM / private-label |
We can provide detailed export carton specifications and logistics guidance for high-volume orders, and we are happy to discuss your market’s specific voltage requirements, plug types, and how we can align our production schedule with your inventory needs.
Certifications Available
Compliance documentation can be provided on request to support your market-entry and customs requirements. Available certifications include:
- CE
- RoHS
- UL
- ETL
- FCC
- KC
- EAC
- UKCA
- ISO 9001
- FDA
- BSCI
Full Technical Specifications
- Model: UAHFW19 (Series FW)
- Production Type: Factory-direct; OEM/ODM available
- Material: High-grade ABS housing
- Suction Power: 80 kPa
- Flow Rate: 12 L/min ± 15%
- Sealing Width: Maximum 32 cm
- Heating Strip: Five-layered construction, 3 mm width
- Motor: DC 15V rated motor
- Power Consumption: 150W
- Voltage Support: 100–220V (50–60Hz)
- Operational Modes: Intelligent Vacuum Mode Selection, Soft Vacuum, Manual Sealing, Controllable Vacuum Degree
- Hardware Features: Double hand-press lock, detachable drip tray, detachable upper part, integrated roll storage with blade cutter
- Included Accessories: Vacuum bag roll, flat vacuum bags, external suction tube, power cord
- Product Dimensions: 38.5 × 15.5 × 12.5 cm
- Product Gross Weight: 1.85 kg
- Packaging: 4 units per export carton (44.7 × 41 × 40.2 cm, 9 kg)
- OEM/ODM: Available for custom branding and configuration
Frequently Asked Questions
What is the minimum order quantity for the UAHFW19?
Our MOQ starts at 100 units. We can discuss trial shipments for partners testing a new market.
How strong is the suction?
The UAHFW19 delivers a steady 80 kPa of vacuum suction, with a flow rate of 12 L/min ± 15%.
What is the maximum sealing width?
The sealing bar measures a maximum of 32 cm, wider than the 28–30 cm typical of entry-level machines, so users can work with a broader range of bag sizes.
What voltage and power does it use?
The unit runs across a 100–220V range (50–60Hz), draws 150W, and uses a DC 15V rated motor.
Can you produce it under our own brand?
Yes. We offer OEM, ODM, and private-label programs, including custom branding, packaging, and plug/voltage configuration.
What are the lead time and trade terms?
Standard production lead time is 15–30 days depending on volume, quoted FOB China. Units ship 4 per export carton (44.7 × 41 × 40.2 cm).
Is the unit covered by a warranty?
Yes — a 12-month warranty against manufacturing defects, with a detachable drip tray and detachable upper part for straightforward cleaning and maintenance.
Which certifications are available?
On request we can provide CE, RoHS, UL, ETL, FCC, KC, EAC, UKCA, ISO 9001, FDA, and BSCI documentation to support your market entry.
Discuss Your Requirements
We are looking for partners who value technical substance over flashy marketing. Whether you need a trial shipment to test the market or a full OEM production run with custom branding, Guilin Prime Household Products Co., LTD is ready to discuss the technical details — custom voltage, regional plug types, and aligning our production schedule with your inventory.
Contact: [email protected]
