UAH53T Vacuum Sealer: 5 Specs Behind the 70kPa Quote
At the 10-unit tier, UAH53T costs $10.40 each; the quote still turns on whether its 70kPa suction, 32cm seal, and 135W input match the buyer’s bags and workload. A UAH53T vacuum sealer is a compact external-suction machine for food bags and hose-connected accessories, supplied for wholesale, OEM, and private-label programs.
// 01 — Key takeaways
Founded in 2005, the documented 15,000 m² manufacturing base operates seven production lines. The Prime Household Trust Center records the company-level factory facts and 12-month warranty.
Headline suction sits beside a separate 4–8L/min ±15% flow-rate field; buyers need both in the technical brief.
The sealing width pairs with a 5mm heating strip, which defines the working seal geometry.
The ABS model accepts 100–240V input and includes an external vacuum hose and food-sealing bags.
Four direct unit tiers run from $10.40 at 10 units to $9.86 at 5,000 units.
// 02 — Quote fields
Which UAH53T vacuum sealer fields change the quote?
Five fields shape a usable quotation: bag width, suction and flow, film-and-seal geometry, voltage and plug scope, and the required repeat-cycle workload. Price and MOQ then sit beside that technical definition. This order prevents a low unit tier from hiding a poor fit.
What bag format fits a 32cm seal?
The 32cm field describes the machine’s sealing width, not a promise that every 32cm-wide pouch will lie correctly on the bar. The intended embossed bag or roll must sit flat inside the working area. Record film construction, total width, thickness, mouth condition, and product fill during the trial.
How do 70kPa and 4–8L/min differ?
The 70kPa value is the headline suction-pressure field, while 4–8L/min ±15% is the listed flow range. Pressure describes the vacuum level the system targets; flow describes how quickly air can move under stated conditions. Neither number alone proves a clean, durable heat seal on the buyer’s film.
What does 100–240V settle?
The 100–240V rating gives one broad input range, and the machine’s listed power is 135W. It does not settle the destination plug, cord, labeling, instructions, or market documentation. Those items belong in the SKU definition before artwork and packaging move into production.
// 03 — Data sheet
What does the UAH53T data sheet actually list?
The direct product record lists an ABS body, 135W power, 100–240V input, a 32cm seal, a 5mm heating strip, 70kPa headline suction, dry and wet suction ranges, and 4–8L/min ±15% flow. It also names an illuminated touch panel, detachable base, and overheat protection.
Source note: Every product, packaging, and commercial figure in this article comes from the direct August 2026 SKU records for UAH53T, UAHTGX3, or UAHFW2. Catalogue ranges should be carried unchanged into the signed order specification.
UAH53T specification sheet
Rev. 2026.08
| Spec | UAH53T catalogue value | Why it matters |
| Material | ABS | Defines the listed housing material. |
| Accessories | Food-sealing vacuum bags; external vacuum hose | Sets the baseline pack contents. |
| Power | 135W | Fixes the rated input for the model brief. |
| Voltage | 100–240V | Supports multi-market input planning. |
| Sealing width | 32cm | Sets the maximum listed seal span. |
| Heating strip | 5mm | Defines the listed band width. |
| Headline suction | 70kPa | Provides the model’s primary pressure reference. |
| Dry suction field | 60–95kPa | Records the separate dry range exactly as supplied. |
| Wet suction field | -1–65kPa | Records the separate wet range without turning it into a liquid-handling claim. |
| Flow rate | 4–8L/min ±15% | Adds airflow context to the pressure figure. |
Why does a 5mm heating strip matter?
A 5mm heating strip defines a wider band than a narrow wire, but width alone does not prove strength or leak resistance. Film composition, mouth contamination, heat profile, pressure, and cooling time still control the result. The accepted pouch must therefore be part of the seal test and product specification.
What does the detachable base change?
The detachable base creates an access point for handling and cleaning, while overheat protection adds a named protective feature. The source record does not label the base dishwasher-safe or specify a cleaning chemical. Instructions should show removal, refitting, and the surfaces that may be wiped after use.
Does the external hose fit every container?
No universal container interface is stated. UAH53T includes an external vacuum hose and supports external vacuum, but the mating valve, container type, and adapter set are not defined in the record. A private-label pack should name the exact hose, connector, and compatible accessory that ships with the order.
// 04 — Comparison
How does UAH53T compare with two direct-SKU siblings?
UAH53T sits between a 120W, 65kPa model with roll storage and a 185W, 90kPa model with a larger 35cm seal. The direct price rows use different quantities, so the matrix positions specifications and features; it does not rank landed cost or imply equal order terms.
| Model | Power | Suction | Seal / strip | Flow | Direct unit tier |
|---|---|---|---|---|---|
| UAH53T Featured | 135W | 70kPa | 32cm / 5mm | 4–8L/min ±15% | $10.40 at 10 |
| UAHTGX3 | 120W | 65kPa | 30cm / 3mm | 4L/min ±15% | $14.00 at 1 |
| UAHFW2 | 185W | 90kPa | 35cm / 4mm | 30L/min ±15% | $51.61 at 1,000 |

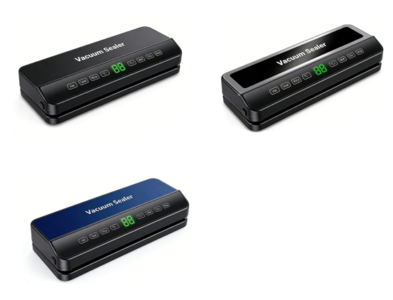

When is UAHTGX3 the closer fit?
UAHTGX3 fits a brief that values built-in roll storage, a bag cutter, temperature adjustment, intelligent pressure detection, and a waterproof touch screen. Its direct record lists 120W, 65kPa, a 30cm seal, a 3mm strip, and 4L/min ±15% flow. Its first unit tier is $14.00.
When does UAHFW2 fit the range?
UAHFW2 fits a larger platform brief. It lists 185W, 90kPa, a 35cm seal, 4mm strip, and 30L/min ±15% flow. Its ABS-and-stainless-steel body adds a handle lock, roll storage, bag cutter, removable heating wire, and drip tray. The only direct tier is $51.61 at 1,000 units.
Why not rank the three models by kPa alone?
Suction is one selection input. Bag width, airflow, seal band, controls, moisture handling, cutter and roll storage, cleanability, repeat-cycle behavior, pack size, and service position can change the better assortment choice. The same bag and test method make model results comparable; catalogue pressure figures do not create that control.
Read the quantity beside every price
UAH53T, UAHTGX3, and UAHFW2 open at 10, 1, and 1,000 units respectively. Freight, branding, accessories, documents, and destination costs are outside those unit fields and belong in the issued quotation.
“A suction number becomes a buying criterion only after the bag, seal test, and workload are named.”
— Mi Lan, Founder, Guilin Prime Household Products Co., Ltd.
// 05 — Test protocol
How should a UAH53T vacuum sealer be tested?
Test UAH53T with the intended film, fill, seal position, ambient conditions, and repeat count. Record evacuation behavior separately from seal integrity. The protocol should also exercise the external hose, detachable base, touch panel, and overheat response, then define a clear pass condition for each observed result.
Run a seal-peel and leak sequence
Prepare clean and deliberately challenging bag mouths using the intended film. Record seal appearance, band continuity, wrinkles, channel leaks, peel method, test timing, and any rework. A strong-looking line is not enough; the written method must distinguish a heat-seal fault from trapped product, a folded mouth, or damaged film.
Separate evacuation from seal quality
Time the evacuation and sealing stages independently. If the buyer uses a pressure fixture, record its placement, calibration reference, end point, and hold period. Also note bag volume and product load. That evidence shows whether a failure starts in the pump path, the bag interface, or the heating stage.
Exercise dry and moist workflows
The catalogue supplies separate dry and wet suction fields but does not promise free-liquid chamber sealing. Use the actual dry and moist foods planned for the channel, keep liquid away from the pump path, and document stop behavior, mouth cleanliness, base access, and the final seal. Do not market the model as a chamber sealer.
Stress the repeat-cycle claim
If the 1,000-operation statement matters to the channel, build a repeat trial around one named bag format and cycle definition. Log completed operations, pauses, housing condition, seal drift, overheat events, and failure criteria. The order can then reference an observed result instead of broadening the catalogue sentence into an unsupported duty promise.
Keep appliance performance separate from food safety
The USDA FSIS packaging guidance explains that vacuum packaging removes air and can slow quality loss, but reduced oxygen changes food-safety controls. The FDA Food Code provides the retail-food framework for reduced-oxygen packaging. A machine specification does not replace temperature, process, and local regulatory requirements.
// 06 — Market fit
Who should shortlist this 135W external-suction model?
UAH53T fits distributors and private-label programs seeking a compact 32cm external-suction platform with a 5mm strip, hose function, and broad input voltage. Foodservice buyers can also assess it for defined bag work, but the product record does not state chamber capability or a commercial duty certification.
Distributors building a compact tier
The 36×12×5cm product size, 0.76kg gross product weight, illuminated touch panel, and direct price ladder support a compact assortment position. The useful comparison is not “more suction is always better.” It is whether the selected bags, controls, service route, and price point match the distributor’s target channel.
Private-label and OEM programs
The direct record offers OEM and ODM work for logo, packaging, color, and specifications. Start with the unchanged UAH53T platform, then state every requested difference. Artwork should follow the technical definition, because a new label cannot resolve an unsettled hose interface, plug, bag set, or repeat-cycle claim.
Hotels, delis, and meal-prep operations
Foodservice buyers should test the actual portions and workflow while keeping food controls separate from equipment selection. USDA notes that unopened vacuum packages can be frozen as supplied in its freezing and food-safety guidance. Local rules, refrigeration, labeling, and process plans still govern how a venue handles reduced-oxygen packages.
// 07 — Commercials
What are the UAH53T price, MOQ, and carton facts?
UAH53T lists $10.40 at 10 units, $10.30 at 500, $10.00 at 1,000, and $9.86 at 5,000. Its standard MOQ is typically 100 units, with smaller trial orders available on request. The 100-unit MOQ has no separate catalogue price, so the issued quotation connects quantity and configuration.
| Quantity tier | Catalogue discount | Direct unit price |
|---|---|---|
| 10 | $0.00 | $10.40 |
| 500 | $0.10 | $10.30 |
| 1,000 | $0.40 | $10.00 |
| 5,000 | $0.54 | $9.86 |
How does the 100-unit MOQ relate to the 10-unit tier?
The product record names a typical 100-unit MOQ and says smaller trial orders may be available, while the price ladder begins at 10 units. Those fields are not a promise that every 10-unit request will be accepted. The quotation states the available quantity, price, configuration, and validity for the transaction.
What goes into each export carton?
The packaging record lists a 38.5×9×18.5cm retail pack, 10 units per export carton, a 47×39.5×39cm carton, and 11kg carton weight. The product itself is listed at 36×12×5cm and 0.76kg gross weight. Freight planning should use the final branded pack data tied to the order.
What are the lead time and payment terms?
The direct record states 15–30 days for bulk production after deposit and 3–7 days for samples. Standard payment is 30% deposit and 70% before shipment by T/T, with Alibaba Trade Assurance supported. FOB China through Shenzhen or Guangzhou is stated, while EXW and CIF can also be arranged.
What changes an OEM quotation?
Logo method, color, package artwork, manual language, plug and cord, bag and hose set, destination documentation, inspection scope, quantity, and Incoterm can change the commercial offer. Send those fields together. That lets Guilin Prime Household Products Co., Ltd. quote the requested configuration as a manufacturer and trading company, not as a sourcing agent.
// 08 — Manufacturing
How we manufacture and control a UAH53T order
Guilin Prime Household Products Co., Ltd. sells household and kitchen products as a manufacturer and trading company. For UAH53T, the control path fixes the housing and seal geometry, matches pump and electronics to the SKU, tests the ordered bag workflow, and links destination compliance names to the 12-month warranty route.
In-house tooling and private-mould control
The controlled brief identifies the ABS housing, 36×12×5cm product envelope, detachable base, 32cm sealing path, 5mm strip, touch-panel layout, color, logo surface, and package artwork. Standard-tool and private-mould requests use separate signed definitions so a custom change does not drift into the baseline SKU.
Pump and PCBA burn-in
Assembly records tie the pump path, 135W rating, 100–240V input, illuminated panel, heating control, hose port, and overheat protection to the ordered configuration. Functional burn-in covers controls, evacuation, sealing, and protective response without assigning an undocumented duration or pass threshold in this article.
Seal-integrity and quality-control testing
Line quality control uses the ordered bag and pack definition to inspect seal continuity, evacuation, hose function, base fit, touch controls, appearance, labeling, accessories, and carton marks. The buyer’s accepted method supplies the measurable limits, keeping a catalogue range from becoming an invented production result.
Certification names and 12-month warranty
Company compliance names include CE and RoHS for relevant export programs, and every unit carries a 12-month warranty. The selected model, plug, labeling, materials, and destination determine the file set for the order. Certification names here do not assert that every configuration carries every mark.
// 09 — Purchase order
What belongs on the UAH53T purchase order?
A usable purchase order names UAH53T, quantity, unit price, currency, Incoterm, destination, voltage, plug, color, logo method, artwork revision, manual language, bags, hose interface, inspection method, schedule trigger, payment milestones, carton marks, warranty contact, and required documents. Each item closes one handoff between sales, production, quality, and receiving.
Lock the product definition
Attach the controlled UAH53T specification by revision and use it as the technical baseline. Define the intended embossed bag or roll by construction, width, thickness, and seal position. Then name the supplied hose, connector, mating valve, and compatible external accessory. This is the one interface definition used across the order.
Lock the commercial and logistics fields
State quantity, direct unit price, currency, Incoterm, destination, payment milestones, bulk schedule, retail-pack revision, 10-unit carton, carton marks, and freight contact. If the branded pack changes the 38.5×9×18.5cm box or 47×39.5×39cm carton, the revised dimensions should replace the baseline fields in shipping documents.
Lock acceptance and support
Reference the selected evacuation, seal, repeat-cycle, hose, control, and pack-out methods. Name the evidence required at inspection, the party that receives it, the remedy path, and the contact for the 12-month warranty. This turns the buyer’s evaluation into a shared production and receiving standard.
// 10 — Buyer questions
What do wholesale buyers ask about UAH53T?
Buyers usually ask whether 70kPa is sufficient, which bags fit the 32cm bar, how reduced-oxygen packages should be handled, and how the MOQ relates to the price tiers. The answers below separate direct SKU facts from food-process duties and buyer-defined acceptance work.
Is 70kPa enough for a vacuum sealer?
What size bags can UAH53T seal?
Can vacuum-sealed food be stored at room temperature?
What are the UAH53T MOQ and price tiers?
Does UAH53T support OEM work and a warranty?
// 11 — Shortlist
Should UAH53T enter the wholesale shortlist?
UAH53T belongs on a shortlist when the brief needs a compact 135W, 100–240V external-suction platform with a 32cm seal, 5mm strip, hose path, and direct tiers below $10.40. Keep it there only if the intended bags, repeat workload, food process, pack, and service route pass the written evaluation.
The model’s value is its defined combination of size, seal geometry, suction, airflow, accessories, and unit tiers. Use the specification sheet to frame the sample, the comparison matrix to position the range, and the purchase-order fields to preserve the accepted configuration through production and receiving.
Featured model · UAH53T
UAH53T 135W External-Suction Vacuum Sealer
70kPa · 4–8L/min ±15% · 32cm seal · 5mm strip · 100–240V
From $9.86/unit at the 5,000-unit direct tier
