The Series G UAH39G is a touch-screen external vacuum food sealer built by Guilin Prime Household Products Co., LTD for high-volume distributors, importers, and private-label brands. It delivers 65 kPa of suction with a 4 L/min flow rate, a 30 cm sealing bar backed by a 3 mm heating strip, six control modes (Vac, Seal, Rice, Wet, Dry, Stop), a 120 W motor, 100–240 V wide-voltage operation, a waterproof touch screen on a stainless steel panel, and an optional UV-C lamp module. As the factory, we run OEM/ODM and private-label programs with a low MOQ from 100 units, 15–30 day lead times, and FOB China terms — engineered for consistent seals and low after-sales return rates at scale.
What the UAH39G is, in one line

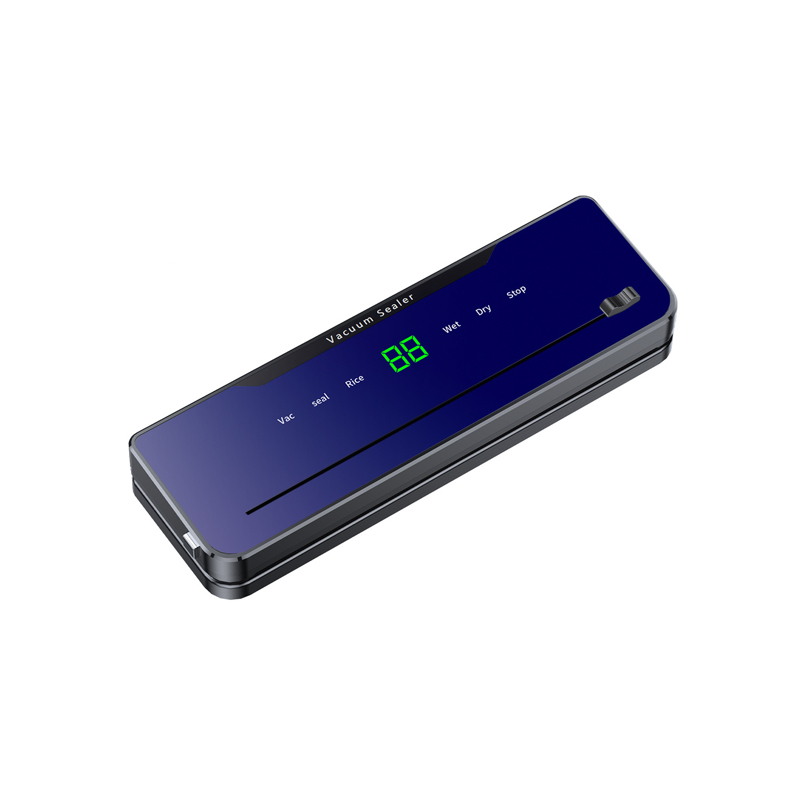

The UAH39G is a compact, external (out-of-chamber) vacuum food sealer in our Series G line, designed around a flat waterproof touch panel rather than mechanical buttons. It is aimed at buyers moving real volume — distributors, importers, and private-label brands who want a single SKU that covers most household and light-commercial sealing needs without the warranty headaches that come from thin internals or weak welds. We design and assemble it in our own facility in China, which lets us hold consistent quality from ABS injection through final carton packing.
Why we engineered it this way
Our reasoning as a manufacturer is simple: a successful export product is one you rarely hear about after it ships. Distributors build their reputations on reliability and cannot afford containers of units that fail a few months in. So with the UAH39G we designed against the two failure modes we see most in this category — liquid reaching the motor, and switch panels degrading in wet kitchens — and we standardized a suction figure we can hold across a full production batch rather than chasing a headline number we cannot repeat.
Real product specifications
Every figure below is taken directly from the UAH39G production spec sheet. We do not inflate suction numbers or publish ratings we cannot stand behind.
- Model: UAH39G (Series G external vacuum sealer)
- Body material: ABS casing with stainless steel panel
- Rated power: 120 W
- Voltage: 100–240 V (wide voltage)
- Suction: 65 kPa
- Air flow rate: 4 L/min ± 15%
- Sealing width: 30 cm
- Heating strip width: 3 mm
- Control modes: Vac, Seal, Rice, Wet, Dry, Stop
- Display / controls: waterproof touch screen with LED display
- Panel: stainless steel upper panel
- UV-C lamp module: hardware feature (lamp component built into the base)
- Other features: simultaneous multi-bag sealing, external vacuum hose compatible, detachable base for easy cleaning
- Included accessories: food sealing vacuum bags, external vacuum hose
- Product dimensions: 36.5 × 11 × 5.5 cm
- Product gross weight: 0.78 kg
- Packaging size: 37 × 13.2 × 6 cm
- Export carton size: 55 × 39 × 32 cm
- Export carton quantity: 20 units
- Export carton weight: 17 kg
- OEM / ODM: available
Feature breakdown for B2B buyers
65 kPa suction with a stable 4 L/min flow rate
A vacuum sealer is only useful if it pulls air consistently from the first unit to the last. The UAH39G is rated at 65 kPa with a 4 L/min ± 15% flow rate at an efficient 120 W. We tune the pump for repeatable performance across a production batch rather than a single peak figure, because predictable suction is what keeps end-user complaints and returns down for your channel. Pushing suction artificially higher tends to invite motor strain or a bulkier footprint, so we standardized at the level the unit can hold reliably.
30 cm sealing width and a 3 mm heating strip
The 30 cm bar lets operators seal several bags side by side at once, and the 3 mm heating strip lays down a thick, secure weld. A weak seal is the most common cause of spoiled product and returned units, so the wider strip and bar are a deliberate choice to protect your brand’s reputation at retail and to give your sales team a concrete throughput advantage to pitch.
Six modes from one machine
Vac, Seal, Rice, Wet, Dry, and Stop cover dry grains through marinated, moisture-heavy foods. For a wholesaler, a versatile single unit means fewer SKUs to stock and a simpler catalog that still answers most household and light-commercial use cases.
Waterproof touch screen and stainless steel panel
Mechanical buttons are the primary failure point in active kitchens — grease, moisture, and fine powders work their way into unsealed switches. The UAH39G uses a flat, waterproof touch panel with a clear LED display on a stainless steel surface, which protects the 120 W motor and the control board underneath. For importers, that build detail translates into a lower warranty-claim rate from electronic shorts and panel wear.
100–240 V wide voltage
The power supply accepts a global voltage range, so a single hardware configuration ships into most markets. That simplifies cross-border logistics, warehousing, and SKU management for distributors selling across regions.
UV-C lamp module and detachable base
The UAH39G can be supplied with a UV-C lamp module built into the base, offered purely as a hardware feature of the unit. Paired with the fully detachable base, the machine is straightforward to wipe down and keep tidy, and the removable base helps stop liquid from reaching the motor during wet sealing — a practical durability benefit, not a health claim.
Factory, quality control, and warranty
We operate as a factory-direct partner, controlling the process from raw ABS injection through final carton packing. Our in-house quality control is preventative rather than a single end-of-line glance: we check motor strain under continuous run, heating-strip consistency, and vacuum-pressure stability before a batch leaves the line, and we stress-test the ABS casings for impact resistance. Each UAH39G is backed by a 12-month warranty. The aim is simple — ship a unit that performs predictably so your channel spends less margin on replacements.
OEM, ODM, and private-label programs
Guilin Prime Household Products Co., LTD works with OEM, ODM, and private-label buyers to customize branding, packaging, color, accessories, and localized compliance. When you put your logo on the UAH39G, it has to perform reliably under your name, so we treat your brand reputation as our own. Our model is built around long-term, multi-year supply relationships rather than one-off containers.
Ordering terms at a glance
- MOQ: from 100 units
- Lead time: 15–30 days, depending on order volume and customization
- Trade terms: FOB China
- Customization: OEM / ODM / private-label (branding, packaging, accessories, localized compliance)
- Warranty: 12 months
Certifications available on request
Depending on your destination market and order, the following certifications can be made available, with documentation provided on request: CE, RoHS, UL, ETL, FCC, KC, EAC, UKCA, ISO 9001, FDA, and BSCI. Tell us your target market and we will confirm which certificates apply to your configuration.
Why the demand is stable
Demand for vacuum food sealers is not a passing trend. With food costs rising, preservation and waste reduction matter to households and small commercial kitchens alike — from families bulk-buying groceries to a small café managing ingredient shelf life. A touch-screen unit that reliably extends shelf life without frequent mechanical failure taps into a steady, replenishable market, which is exactly the kind of product line a distributor can scale on with confidence.
A scenario in stable distribution
Consider a common path for our wholesale partners. A mid-sized distributor came to us after struggling with a high defect rate from a previous supplier — mostly pump failures after sealing wet foods. They ran a trial on the UAH39G. Because the unit has a dedicated “Wet” mode and a detachable base that keeps liquid away from the motor, their replacement rate on returns fell sharply over the following quarters, freeing up margin to scale their private label into new retail channels. That quiet, repeatable stability is what we aim to provide as a manufacturer.
Frequently asked questions
What is the suction power of the UAH39G?
It is rated at 65 kPa, with an air flow rate of 4 L/min ± 15% at 120 W.
What is the minimum order quantity?
MOQ starts at 100 units. Lead time is typically 15–30 days on FOB China terms, depending on volume and customization.
Do you offer OEM and private-label?
Yes. Guilin Prime Household Products Co., LTD provides OEM, ODM, and private-label programs covering branding, packaging, accessories, and localized compliance.
What does the UV-C lamp module do?
It is a hardware lamp component built into the base of the unit. We describe it as a feature of the machine only; we make no health or efficacy claims about it.
Which certifications are available?
CE, RoHS, UL, ETL, FCC, KC, EAC, UKCA, ISO 9001, FDA, and BSCI can be made available on request, depending on your market and order. Documentation is provided on request.
Is the UAH39G compatible with different countries’ power systems?
Yes. It operates on 100–240 V wide voltage, so one configuration suits most markets.
Let’s discuss your product line
If you are evaluating manufacturers for your next inventory cycle, we are ready to talk production lead times, OEM branding, certifications for your market, and how the UAH39G fits your long-term growth. Reference product: view on Alibaba.
